NBB1,5-5GM25-E2-V3
W chwili obecnej produkt nie jest dostępny w naszym magazynie.
Po złożeniu zamówienia, powiadomimy o przewidywanym terminie realizacji danego produktu.
Darmowa dostawa
od 1000 PLN (netto)

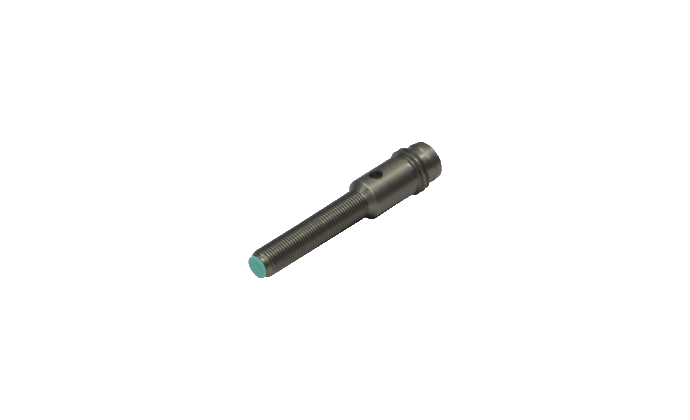

NBB1,5-5GM25-E2-V3 Czujnik indukcyjny
General specifications
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 1.5 mm |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 1.215 mm |
| Actuating element | 5 mm x 5 mm x 1 mm |
| Reduction factor rAl | 0.41 |
| Reduction factor rCu | 0.38 |
| Reduction factor r304 | 0.85 |
| Reduction factor rBrass | 0.54 |
| Output type | 3-wire |
Nominal ratings
| Operating voltage | 10 ... 30 V |
| Switching frequency | 0 ... 3000 Hz |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 3 V |
| Operating current | 0 ... 200 mA |
| Off-state current | 0 ... 0.1 mA typ. 0.1 µA at 25 °C |
| No-load supply current | ≤ 10 mA |
| Switching state indicator | LED, yellow |
Functional safety related parameters
| MTTFd | 1245 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Mechanical specifications
| Connection type | Connector plug M8 x 1 , 3-pin |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | POM |
| Degree of protection | IP67 |
