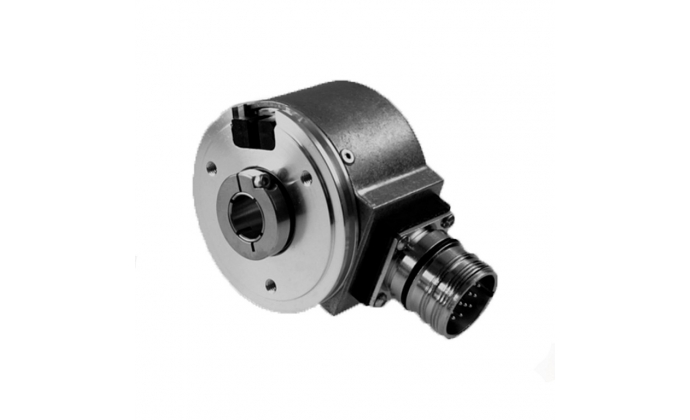

BHF 16.24K1000-L2-A Enkoder Inkrementalny
Technical data BHF series
Electrical ratings
| Voltage supply | 5 VDC ±10 % |
| 10...30 VDC |
| 4.5...30 VDC |
| Consumption typ. | 80 mA (5 VDC, w/o load) |
| 180 mA (4.5 VDC, w/o load) |
| 60 mA (24 VDC, w/o load) |
| Pulses per revolution | 10 … 5000 |
| Reference signal | Zero pulse, width 90° |
| Output frequency | ≤750 kHz |
| Output signals | A 90° B, N + inverted |
| Output stages | Antivalent |
| Push-pull short-circuit proof |
| Push-pull antiv. short-circuit proof |
| Interference immunity | EN 61000-6-2 |
| Emitted interference | EN 61000-6-3 |
| Approval | UL approval / E217823 |
Mechanical design
| Size (flange) | ø58 mm |
| Shaft type | ø12 mm (blind hollow shaft) |
| Protection EN 60529 | IP 42 |
| IP 65 |
| Operating speed | ≤12000 rpm (IP 42) |
| ≤6000 rpm (IP 65) |
| Operating torque typ. | 0.009 Nm (IP 42) |
| 0.037 Nm (IP 65) |
| Material | Housing: aluminium |
| Housing: steel (connection -5) |
| Flange: aluminium |
| Operating temperature | -20...+85 °C |
| Relative humidity | 95 % non-condensing |
| Resistance | EN 60068-2-6 |
| Vibration 10 g, 10-200 Hz |
| EN 60068-2-27 |
| Shock 50 g, 11 ms |
| Connection | Connector M23, 12-pin |
| Cable 2 m |
