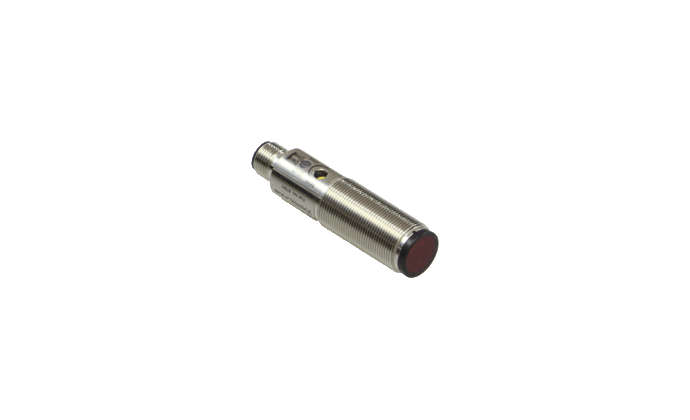

OBT200-18GM60-E5-V1 Diffuse mode sensor
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Free delivery
from 1000 PLN (net)
Ask an experienced consultant:
OBT200-18GM60-E5-V1 Czujnik trybu rozproszonego
- Dual color indication LED
- High switching frequency
- Light/dark ON, programmable
- Strong metallic housing in cylindrical shape M18 x 1
- Degree of protection IP67
OBT200-18GM60-E5-V1 Diffuse mode sensor
General specifications
| Detection range | 0 ... 200 mm |
| Reference target | standard white 200 mm x 200 mm |
| Light source | IRED , 880 nm |
| Light type | infrared |
| Diameter of the light spot | approx. 40 mm at 200 mm |
| Ambient light limit | 10000 Lux |
Indicators/operating means
| Operation indicator | LED green |
| Function indicator | Dual color-LED, yellow/green |
| Control elements | Sensing range adjuster |
Electrical specifications
| Operating voltage | 10 ... 30 V DC , class 2 |
| Ripple | 10 % |
| No-load supply current | ≤ 25 mA |
| Time delay before availability | ≤ 25 ms |
Output
| Switching type | light/dark on electrically switchable |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA |
| Voltage drop | ≤ 2.5 V |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
Conformity
| Product standard | EN 60947-5-2 |
Standard conformity
| Standards 2 | UL 508 |
