LS 97/4 E-L.2,
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Free delivery
from 1000 PLN (net)
Ask an experienced consultant:

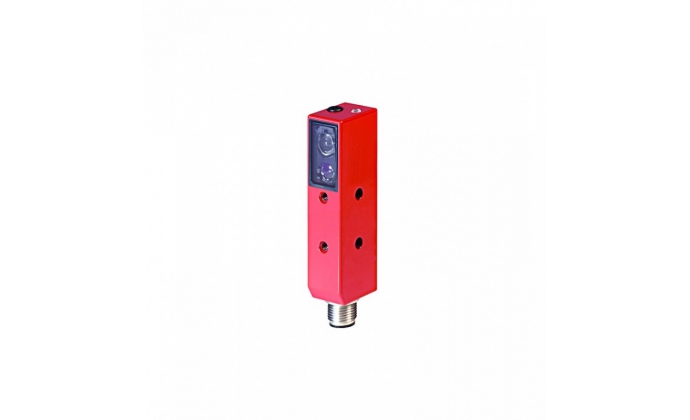

LS 97/4 E-L.2 Odbiornik bramki optycznej
General data
| Series | 97 |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -20 ... 60 °C |
| Producer | Leuze |
Electrical data
| Protective circuit | Polarity reversal protection |
| Supply voltage UB | 10 ... 30 V, DC |
| Residual ripple | 0 ... 15 %, From UB |
| Open-circuit current | 0 ... 40 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching element | Transistor, PNP |
| Switching principle | Light switching |
Time behaviour
| Switching frequency | 200 Hz |
| Response time | 2.5 ms |
Connection
| Type of connection | Connector |
| Thread size | M12 |
| Material | Metal |
| No. of pins | 4 -pin |
Mechanical data
| Dimension (W x H x L) | 18 mm x 75 mm x 23 mm |
| Housing material | Metal |
| Metal housing | Diecast zinc |
| Lens cover material | Glass |
| Net weight | 85 g |
| Type of fastening | Through-hole mounting |
Certifications
| Degree of protection | IP 67 |
| Protection class | II |
| Certifications | c UL US |
| Standards applied | IEC 60947-5-2 |
