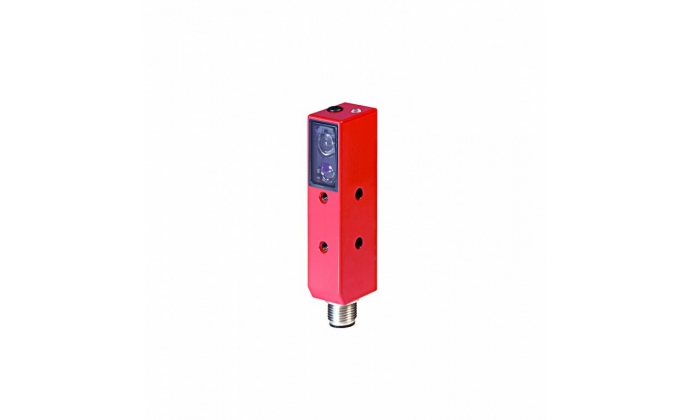

LS 97/2 SE-L.2 (50029650)
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Free delivery
from 1000 PLN (net)
Ask an experienced consultant:
LS 97/2 SE-L.2 Nadajnik bramki optycznej
General data
| Series | 97 |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Ambient temperature, operation | -20 ... 60 °C |
| Producer | Leuze |
Optical data
| Operating range | 0 ... 3.5 m |
| Operating range limit | 0 ... 6 m |
| Light source | LED, Infrared |
Electrical data
| Protective circuit | Polarity reversal protection, Short circuit protected |
| Supply voltage UB | 10 ... 30 V, DC |
| Residual ripple | 0 ... 15 %, From UB |
| Open-circuit current | 0 ... 40 mA |
Time behaviour
| Switching frequency | 200 Hz |
| Response time | 2.5 ms |
Connection
| Type of connection | Connector |
| Thread size | M12 |
| Material | Metal |
| No. of pins | 4 -pin |
Mechanical data
| Dimension (W x H x L) | 18 mm x 75 mm x 23 mm |
| Housing material | Metal |
| Metal housing | Diecast zinc |
| Lens cover material | Glass |
| Net weight | 85 g |
| Type of fastening | Through-hole mounting Via optional mounting device |
Certifications
| Degree of protection | IP 67 |
| Protection class | II |
| Certifications | c UL US |
| Standards applied | IEC 60947-5-2 |
