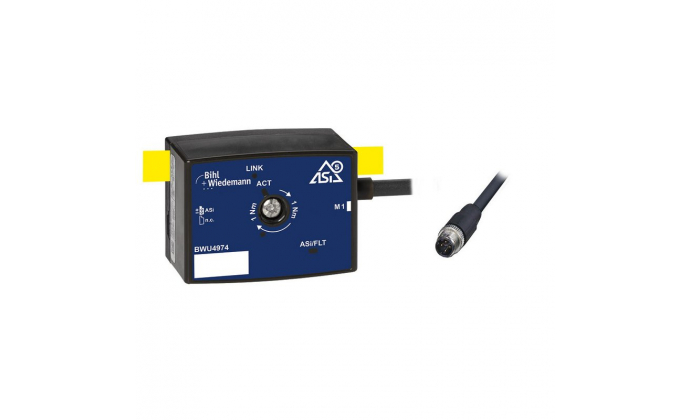

BWU4974 - Active Distributor ASi-5 Motor Module for Lenze i550 motec frequency inverter, IP67, 1M
PRODUCENT CODE: BWU4974
CATEGORY: Drive solutions
Producer: Bihl + Wiedemann GmbH
14-21 days
The product is available on request
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Fast shipping
Free delivery
from 1000 PLN (net)
Free delivery
from 1000 PLN (net)
Do you have questions about the product?
Ask an experienced consultant:
Ask an experienced consultant:
Description
Active distributor ASi-5 motor module, IP67, housing depth 35 mm, for 1 x Lenze i550 motec frequency inverter with Modbus TCP interface, periphery connection via 1 x M12 cable plug, D coded, straight, 4 poles, cable length 1 m, flat design, installation in cable duct possible (installation depth > 35 mm), LED, connection for 1 x ASi profile cable, ASi connection via profile cable and piercing technology, 1 ASi-5 address
Technical data
| Drive | Lenze i550 motec |
| Number of Drives | 1 |
| Inputs digital | no digital inputs |
| Outputs digital | no digital outputs |
| Input voltage (sensor supply) | out of ASi |
| Output voltage (actuator supply) | no output voltage |
| Connection | 1 x M12 cable plug, D coded, straight, 4 poles |
| Round cable | 1 m |
| ASi address | 1 ASi-5 address |
