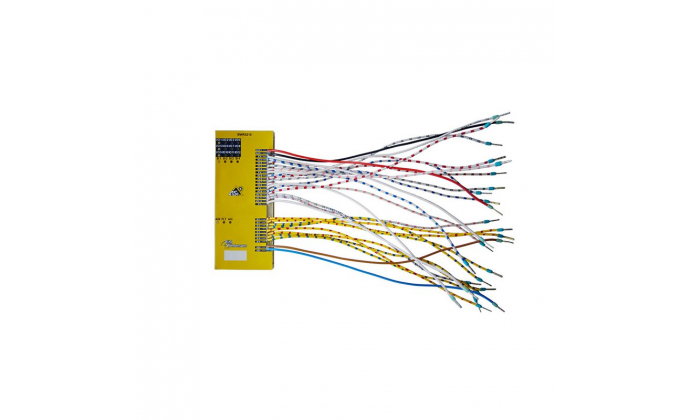

BWR5215 - ASi-5 Safety PCB Module, 110 mm x 45 mm, 4SI/12I/O, wiring pins, connecting wires (200 mm)
PRODUCENT CODE: BWR5215
CATEGORY: AS-Interface Modules - Safety I/O Modules - IP20
Producer: Bihl + Wiedemann GmbH
The product is in categories:
14-21 days
The product is available on request
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Fast shipping
Free delivery
from 1000 PLN (net)
Free delivery
from 1000 PLN (net)
Do you have questions about the product?
Ask an experienced consultant:
Ask an experienced consultant:
Description
ASi-5 Safety PCB Module, 110 mm x 45 mm, up to 4 x 1 channel (SIL1, cat. 2, PLc) or up to 2 x 2 channels safe inputs (SIL 3, cat. 4, PLe) for floating contacts, up to 12 digital inputs, up to 12 digital outputs, input voltage supply out of AUX, output voltage/actuator supply out of AUX, max. 350 mA per output, periphery connection via connecting wires (200 mm), potted, ASi connection via connecting wires (200 mm), 1 ASi-5 address
Technical data
| Inputs Safety | 2 x 2 channels, 4 x 1 channel |
| Safety signal inputs | floating contacts |
| Outputs Safety | no local safe output |
| Safety signal outputs | no Safety signal outputs |
| Input voltage (sensor supply) | out of AUX |
| Output voltage (actuator supply) | out of AUX |
| ASi address | 1 ASi-5 address |
| Special function | no special function |
(
