LS31P80D11-S Limit Switch
Product ID:1SBV030180R1411

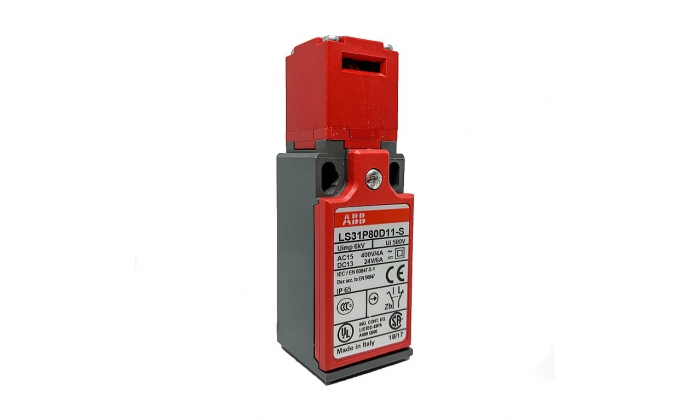

LS31P80D11-S is a 30 mm wide, standard Safety Limit Switch made of fiber-glass reinforced UL-V0 material, with 2 mounting holes at the top, 1 Pg11 cable entry on the bottom, orientable (90°) for key actuator and 1 N.O + 1 N.C slow action (Zb type), overlapping (late closing) contacts.
1SBV030180R1411 Wyłącznik krańcowy LS31P80D11-S
Technical Data
| Action Type of the Contact Element (acc. to IEC 60947-5-1): | Non-overlapping slow action contacts |
| Actuation Speed: | acc. to IEC 60947-5-1 Max. 0.5 m/s |
| acc. to IEC 60947-5-1 Min. 0.01 m/s |
| Actuator Type: | not delivered - order small latch (key) separately |
| Angular Head Adjustment: | adjustable head every 90° |
| B10d Value: | 30 Millions operations |
| Climatic Withstand: | according to IEC 68-2-3 and salty mist according to IEC 68-2-11 |
| Conventional Free-air Thermal Current | acc. to IEC 60947-5-1, q = 40 °C 10 A |
| Connecting Capacity: | Bar AWG 20 ... AWG 14 mm² |
| Bar 0.5 ... 2.5 mm² |
| Consistency (Measured over 1 Million Operations): | 0.1 mm |
| Contact Element Form (acc. to IEC 60947-5-1): | Zb |
| Connecting Terminals (delivered in open position): | M3.5 (+,-) pozidriv 2 screw with cable clamp |
| Degree of Protection: | acc. to IEC 60529 IP65 |
| Electrical Shock Protection acc. to IEC 536: | Double insulation - Class II |
| Flammability According to UL94: | V-0 |
| Maximum Electrical Switching Frequency: | 3600 cycles per hour |
| (AC-15) 3600 cycles per hour |
| (DC-13) 3600 cycles per hour |
| Mechanical Durability: | 0 cycle |
| Mounting by Screws (not supplied): | 2 x M4 screws |
| Movement to be Detected: | small latch (key), front or vertical translation |
| Number of Auxiliary Contacts NC: | 1 |
| Number of Auxiliary Contacts NO: | 1 |
| Number and Type of Bottom Cable Glands: | Pg 11 cable gland |
| Pilot Duty UL/CSA: | A600 |
| Q600 |
| Positive Opening Operation Force (Direct Opening Action): | Minimum Force acc. to IEC 60947-5-1 30 NEW |
| Positive Opening Operation of NC Contact(s): | Yes |
| Rated Impulse Withstand Voltage (Uimp): | 6 kV |
| Rated Operational Current AC-15 (Ie): | (230 V AC) 3.1 A |
| (400 V) NC 4 |
| (24 V) 10 A |
| (130 V) 5.5 A |
| (240 V) 3 A |
| Rated Frequency (f): | Supply Circuit 50 / 60 Hz |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V |
| acc. to UL/CSA 600 V |
| Rated Operational Current DC-13 (Ie): | (24 V) 6 A |
| (110 V) 0.6 A |
| (125 V) 0.55 A |
| (250 V) 0.4 A |
| Resistance Between Contacts: | 25 E45 |
| Short-Circuit Protective Devices: | gG Type Fuses 10 A |
Environmental
| Ambient Air Temperature: | Operation -25 ... +70 °C |
| Storage -30 ... +80 °C |
| Resistance to Shock acc. to IEC 60068-2-27: | Half-sine Pulse for 11 ms, No Change in Contact Position 10 m/s² |
| Resistance to Vibrations acc. to IEC 60068-2-6: | 5g (10 to 500 Hz) no change in position of contacts greater than 100 µs |
| RoHS Status: | Following EU Directive 2011/65/EU |
